Siemens 6AG4104-1DH14-0XX6

SIMATIC IPC547C, .(RACK PC, 19", 4HU), INTERFACES: 2X GBIT LAN…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ $321.77
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

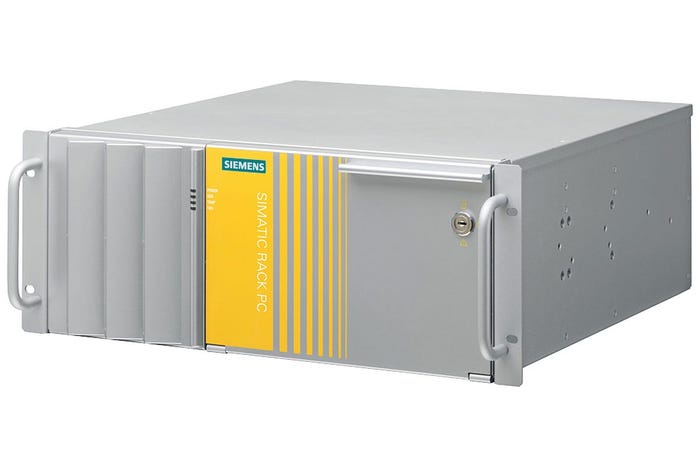

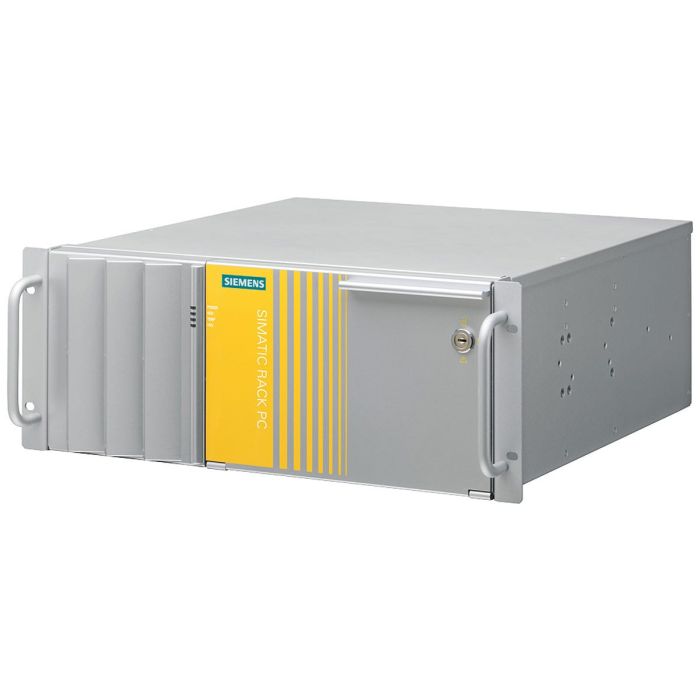

The Siemens SIMATIC IPC547C is a robust and efficient 19" rack PC, specifically designed for industrial environments. With its compact dimensions of 54.00 x 51.00 x 31.00 cm, this 4U unit is suitable for various applications in automation and control systems.

Equipped with dual Gigabit LAN interfaces (RJ45) for high-speed connectivity, the IPC547C also features a serial port (COM1) and multiple USB connections—six on the backside and two on the front. Its flexibility is further enhanced by seven expansion slots (four PCI long, one PCIe x 16, one PCIe x 8, and one PCIe x 1), allowing users to tailor the system to their specific needs.

This model includes 6 drive bays to accommodate various storage options, including three 5.25” and one 3.5” front-access bays, as well as two internal 3.5” bays. For improved reliability, the IPC547C comes with a temperature and fan control watchdog, ensuring optimal performance under varying conditions.

The unit is powered by a Core 2 Quad Q9400 processor (2.66 GHz, 1333 MHz FSB, 6 MB L2 Cache) and supports two 500 GB SATA hard drives with removable disks. It is configured with 2 GB of DDR2 SDRAM in dual-channel mode and includes a DVD+/-RW drive and floppy disk drive.

Note that the SIMATIC IPC547C is sold without an operating system or additional software, yet provides capabilities for seamless integration in various computing environments. With dual 110/230V redundant power supplies and a commitment to quality engineering from Germany, the IPC547C is a reliable choice for any professional looking to enhance their infrastructure.

SIMATIC IPC547C, .(RACK PC, 19", 4HU), INTERFACES: 2X GBIT LAN (RJ45); 1X SERIAL (COM1); 6X USB BACKSIDE, 2X USB FRONTSIDE 2XPS/2; AUDIO; 7 SLOTS (4X PCI LONG, 1X PCIE X 16, 1X PCIE X 8 (1 LINE), 1X PCIE X 1); DRIVE BAYS: 6 (3X 5,25", 1X 3,5" FRONT-ACCESS; 2X 3,5" INTERNAL); TEMPERATURE AND FAN CONTROL WATCHDOG; BOARD RETAINER; CORE 2 QUAD Q9400 (2,66 GHZ, 1333 MHZ FSB, 6 MB L2 CACHE, EM64-T, VT) 2X500 GB SATA HDD REMOVABLE DISKS; FRONTSIDE MOUNTED 2.0 GBYTE DDR2 SDRAM (2 X 1.0 GB), DUAL CHANNEL DVD+/-RW & FDD; WITHOUT EXTENSION WITHOUT OPERATING SYSTEM WITHOUT SOFTWARE; 2 X 110/230V REDUNDANT POWER SUPPLY; WITHOUT PS CORD
General
Manufacturer:
Siemens
Range:
SIMATIC RACK PC
Subrange:
IPC547C
Type of product:
PC racks
PLM
Product phase:
Obsolete
Logistics
Dimensions:
54,00 x 51,00 x 31,00
Weight:
38.65lbs
Commodity Code:
85371091
