6AV6642-0DA01-1AX0

Need more units?

We will support you, please fill in this

Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.

Condition

Repair

Select service ( $986.25 )

Description for 6AV6642-0DA01-1AX0

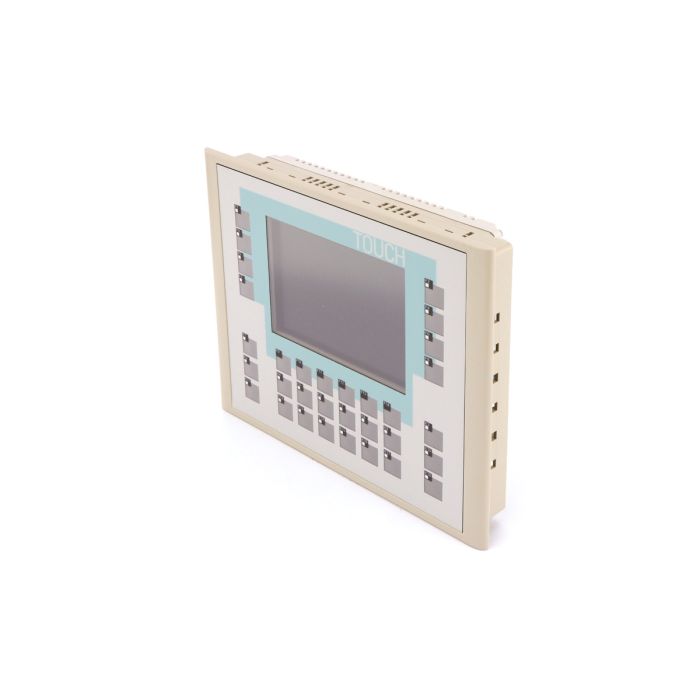

SIMATIC PANEL OP177B PN/DP STN 256 COLOR DISPLAY TOUCH AND KEYS MPI-/PROFIBUS-DP PROTOCOL RS485-/RS422-/USB- INTERFACE ETHERNET - INTERFACE PRINTER INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005

The SIMATIC PANEL OP177B PN/DP is a reliable operator panel that integrates a 5.7-inch STN color display featuring 256 colors. This product is designed for high-performance human-machine interface applications, allowing seamless interaction through both touch and key operation.

Operating on a supply voltage of 24V DC, it supports MPI and PROFIBUS-DP protocols with interfaces including RS485, RS422, USB, and Ethernet. Additionally, it accommodates a printer interface and a slot for MM cards, providing exceptional flexibility in configurations and functionality.

Key features include:

Display Resolution: 320 x 240 pixels
User Memory: 2048 kbytes
Compatible with: WINCC Flexible 2005
Dimensions: 25.00 x 23.00 x 8.00 cm

Please note that this product is listed as obsolete since 2017, making way for the newer successor model 6AV6642-0DA01-1AX1.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-80%

Resource use minerals and metals

-99%

Water use

-86%

Specifications

Brands:

SIEMENS

Manufacturer:

Siemens

Range:

SIMATIC HMI

Subrange:

Operator Panels 170 series

Type of product:

Operator panels

Supply voltage:

24V DC

Product phase:

Obsolete

Successor:

6AV6642-0DA01-1AX1

Supply voltage:

24V DC

Screen diagonal:

5.7

Type of display:

STN

Display resolution:

320 x 240

Type of operation:

Keys and Touch

With colour display:

Yes

Number of colours of the display:

256

Useful project memory/user memory:

2048

Dimensions:

25,00 x 23,00 x 8,00

Weight:

2.20lbs

Commodity Code:

85371091

ECCN number:

5D002
