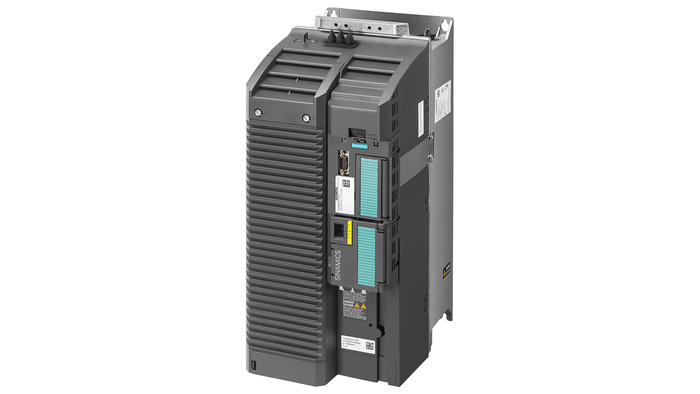

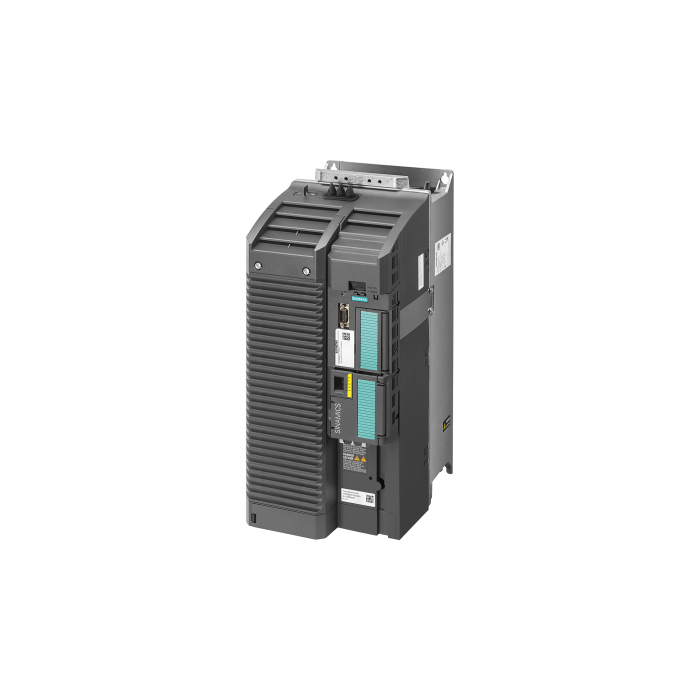

Siemens 6SL3210-1KE28-4UF1

SINAMICS G120C RATED POWER 45.0KW WITH 150% OVERLOAD FOR 3 SEC…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ $591.44
Cashback
Excl. Tax
Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

Introducing the SINAMICS G120C, a compact control unit designed for demanding applications. With a rated power of 45.0 kW and an impressive overload capacity of 150% for 3 seconds, it's engineered to deliver exceptional performance in industrial settings.

This versatile unit operates on a main voltage range of 380-480V AC and can handle frequencies from 47-63 Hz, making it suitable for various environments. The device features a maximum output frequency of 550 Hz and a maximum output voltage of 550 V, ensuring reliability under varying load conditions.

Equipped with a comprehensive I/O interface, including 6 Digital Inputs (DI), 2 Digital Outputs (DO), 1 Analog Input (AI), and 1 Analog Output (AO), this unit supports seamless integration into your automation systems. With integrated PROFINET-PN fieldbus compatibility, it simplifies connectivity and enhances communication across devices.

Safety is paramount, and the SINAMICS G120C is designed with a Safe Torque Off feature, meeting stringent protection standards with an IP20 degree of protection. Manufactured in Germany by Siemens, this reliable unit ensures quality and durability.

Whether you're upgrading your existing systems or integrating new solutions, the SINAMICS G120C is the ideal choice for achieving optimal operational efficiency and performance.

SINAMICS G120C RATED POWER 45.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO, 1AI, 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSD 472x 200x 237(HXWXD) EXTERNAL 24V
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120C
Type of product:
Compact control units
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
82.5
Nom. power rating:
37
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
20,00 x 23,70 x 47,20
Weight:
48.06lbs
Commodity Code:
85044086
ECCN number:
EAR99
EAN:
4042948673256
