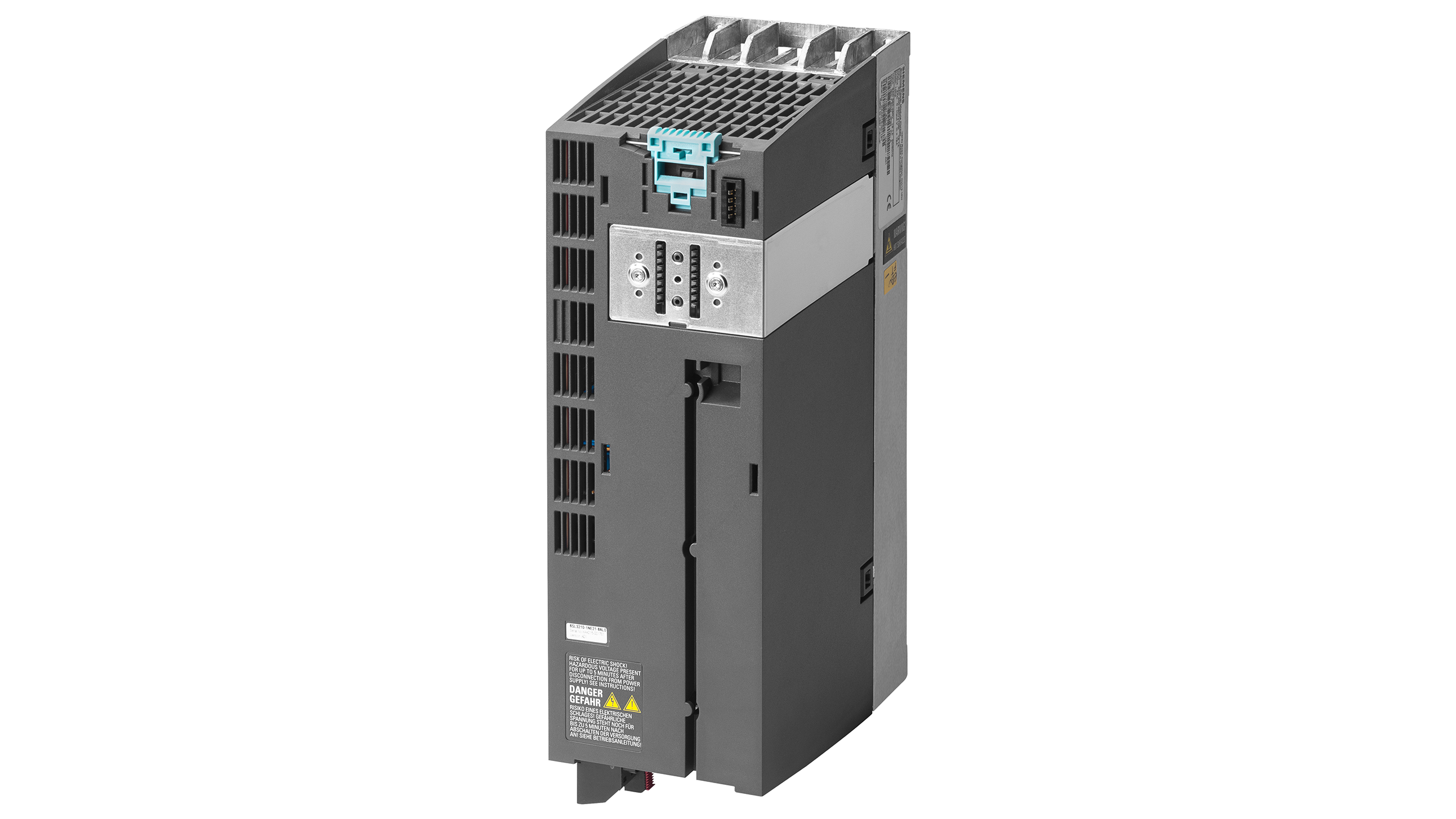

Siemens 6SL3210-1NE21-8AG1

SINAMICS G120 Power Module PM230 with integrated Class A filter…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ $250.00
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120 Power Module PM230 is designed for optimal performance in various industrial applications. This power module features an integrated Class A filter, ensuring compliance with stringent electromagnetic interference standards.

With a protection degree of IP20 and compatible with input voltages from 380V to 480V AC, the PM230 guarantees reliability and efficiency. It operates effectively under frequencies of 50/60 Hz and can handle a maximum output frequency of 550 Hz.

Designed for 3-phase systems, it delivers a nominal power rating of 5.5 kW with a maximum output voltage of 550 V and a nominal output current of 18 A. With low overload capabilities, it can withstand 150% load for 3 seconds and 110% for 57 seconds, providing flexibility during peak demands.

The ambient temperature range for the SINAMICS G120 is between 0 to +40°C, ensuring it operates within safe limits under standard conditions.

Manufactured by Siemens in Germany, this model is released for use with CU240B/E-2 and CU230P-2 control units and is equipped with firmware version V4.4 or higher.

SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 7.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 292x 100x 165 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
18
Nom. power rating:
5.5
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
10,00 x 16,50 x 29,20
Weight:
7.05lbs
Commodity Code:
85044086
ECCN number:
N
EAN:
4042948671313
