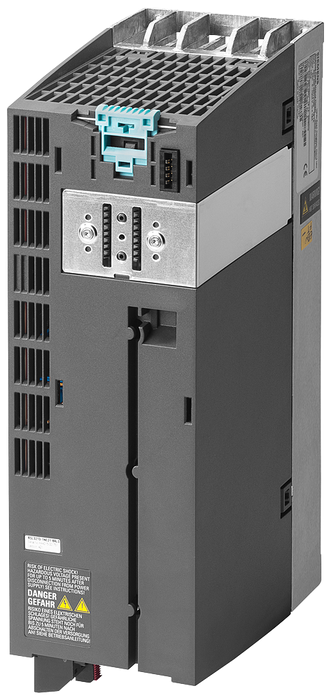

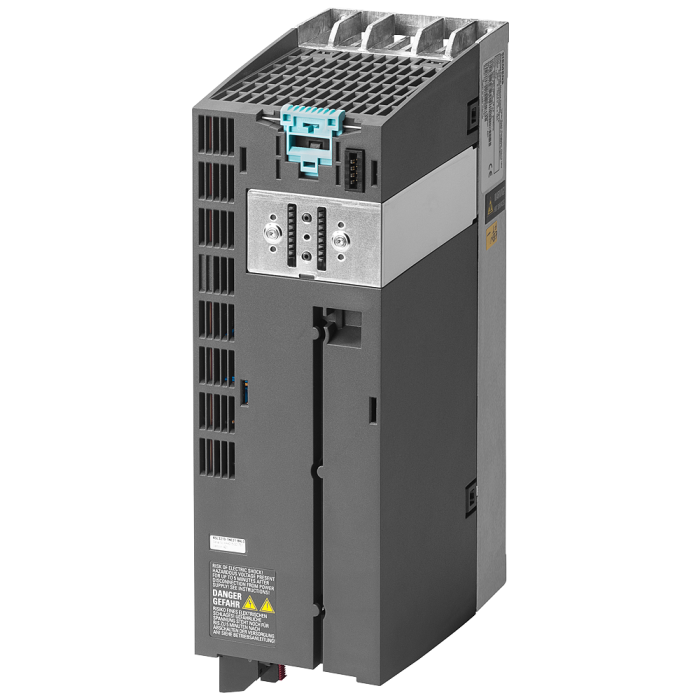

Siemens 6SL3210-1PB21-4AL0

SINAMICS POWER MODULE PM240-2 WITH
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 2,2KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 3KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

The SINAMICS POWER MODULE PM240-2 is expertly designed for demanding industrial applications, offering a robust solution with a built-in Class A filter and braking chopper. This power module operates efficiently with an input voltage range of 200-240V AC and a frequency of 50/60 Hz. It ensures high overload capability, delivering up to 2.2 kW for 200% overload during short bursts, supported by its durable build.

With dimensions of 355 x 140 x 165 mm (HxWxD) and an IP20 protection rating, the PM240-2 is ideal for various installations where space and environmental conditions are considerations. The module can withstand ambient temperatures ranging from -10 to +50 degrees Celsius while maintaining operational integrity.

In addition to its excellent performance, the SINAMICS PM240-2 features low overload output capabilities of 3 kW for 150% for three seconds, making it reliable under peak load conditions. These attributes make the PM240-2 a preferred choice for professionals looking to enhance their automation processes.

General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
200-240V AC
Main frequency:
50/60
Number of phases input:
1
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
13.6
Nom. power rating:
2.2
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
14,00 x 16,50 x 35,50
Weight:
11.02lbs
Commodity Code:
85044095
ECCN number:
3A225
