6SL3210-1PE33-0AL0

Repair

Select service ( $7,509.98 )

Description for 6SL3210-1PE33-0AL0

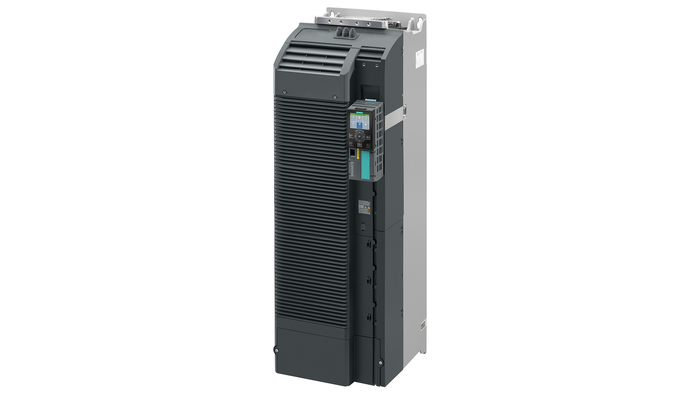

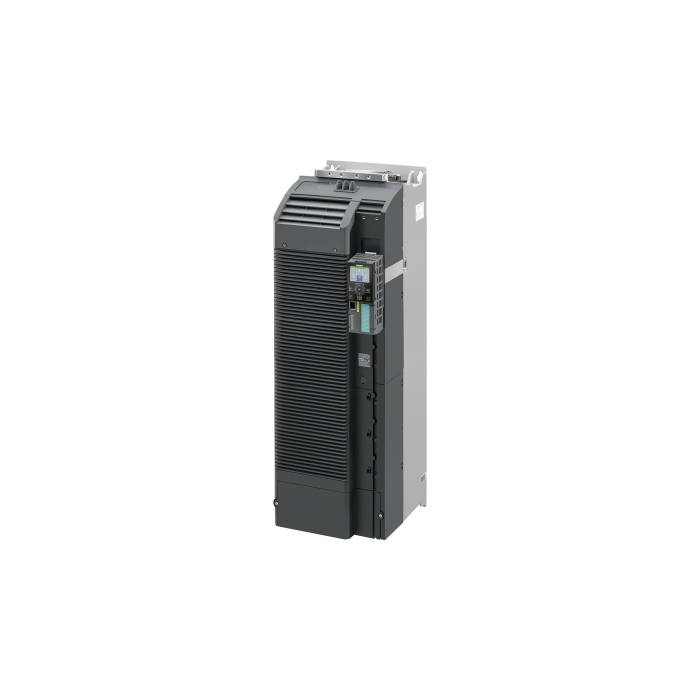

SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C2 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1

The SINAMICS G120/S120 POWER MODULE PM240-2 FSG is engineered for superior performance in the electrical industry. With features like an integrated EMC Class C2 filter, this power module ensures compliance with stringent electromagnetic compatibility requirements. The built-in braking chopper enhances operational efficiency while providing extensive overload capabilities.

This high-quality product operates on a main voltage of 380-480V AC and a frequency of 50/60 Hz, making it suitable for various industrial environments. It supports output frequencies up to 550 Hz and a maximum output voltage of 550 V. With a nominal power rating of 132 kW and a nominal output current of 302 A, it is designed to handle demanding applications with high reliability.

Furthermore, the module is rated for IP20 protection, ensuring durability in a range of ambient temperatures from -20 to +50 degrees Celsius. It is manufactured in Germany by Siemens, a trusted name in electrical solutions.

This power module is an ideal choice for businesses looking to enhance their systems while ensuring safety and efficiency. Upgrade your industrial applications with the SINAMICS G120/S120 and experience unparalleled performance.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Brands:

SIEMENS

Manufacturer:

Siemens

Range:

SINAMICS

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

380-480V AC

Main frequency:

50/60

Number of phases input:

Max. output frequency:

550

Max. output voltage:

550

Nom. output current:

302

Nom. power rating:

132

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions:

30,50 x 35,70 x 100,00

Weight:

270.95lbs

Commodity Code:

85044095

ECCN number:

EAR99
