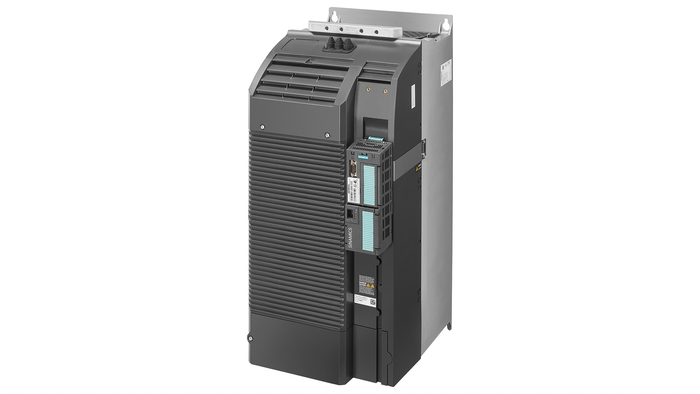

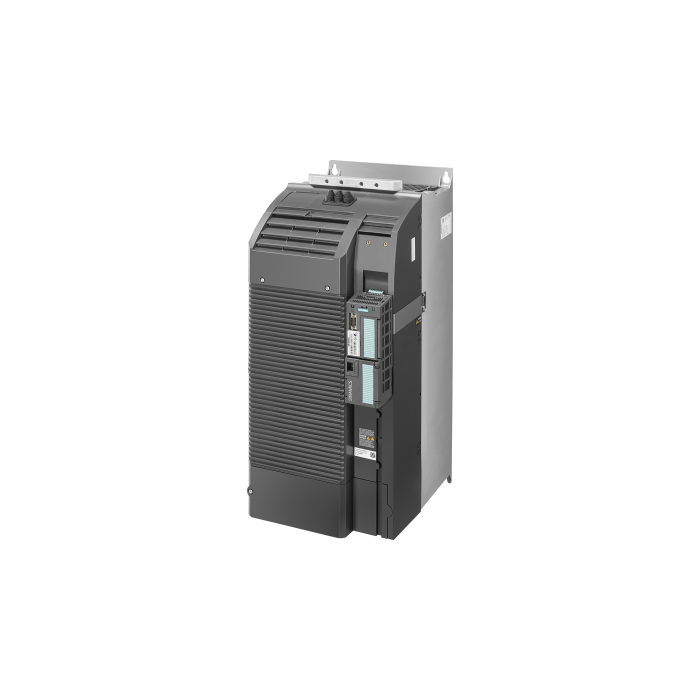

Siemens 6SL3223-0DE31-1BG1

SINAMICS G120P Power Module PM230 w
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ $250.00
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

Introducing the SINAMICS G120P Power Module PM230, designed specifically for demanding electrical applications. With an integrated Class B filter, this unit offers exceptional performance and reliability in a variety of settings.

Operating within a voltage range of 380-480V AC, the module supports a frequency of 50/60 Hz and is capable of handling a maximum output frequency of 550 Hz. This makes it suitable for various industrial tasks, including high-performance drives and motor control applications.

The IP55 degree of protection ensures that the module is well-suited for harsh environments, safeguarding the internal components from dust and water ingress. Additionally, it is built to function efficiently in ambient temperatures ranging from -10 to +40 °C.

With a nominal power rating of 7.5 kW and a nominal output current of 26 A, the SINAMICS G120P is capable of managing low overload conditions such as 11kW at 150% for 3 seconds. Its robust design is tailored for those who demand excellence in power modules.

Choose Siemens’ SINAMICS G120P Power Module for your electrical needs and ensure optimal performance and longevity in your applications.

SINAMICS G120P Power Module PM230 with integrated Class B filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 11kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 -¦C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher
General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120P
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
26
Nom. power rating:
7.5
Degree of protection:
IP55
Degree of protection:
IP55
Logistics
Dimensions:
23,00 x 24,90 x 62,00
Weight:
20.06lbs
Commodity Code:
85044086
ECCN number:
N
