6SL3225-0BE37-5UA0_0

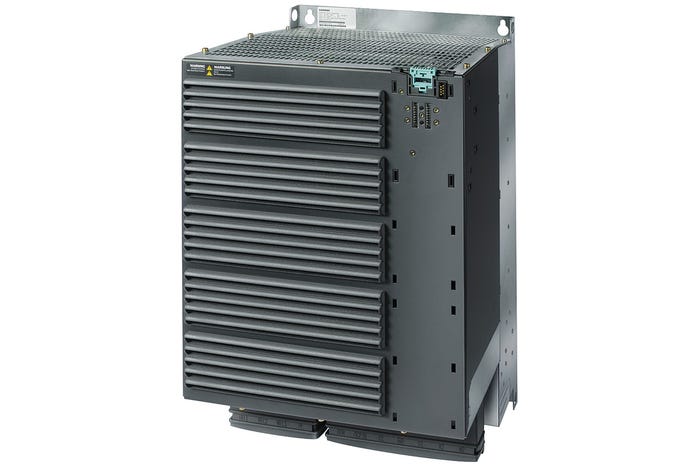

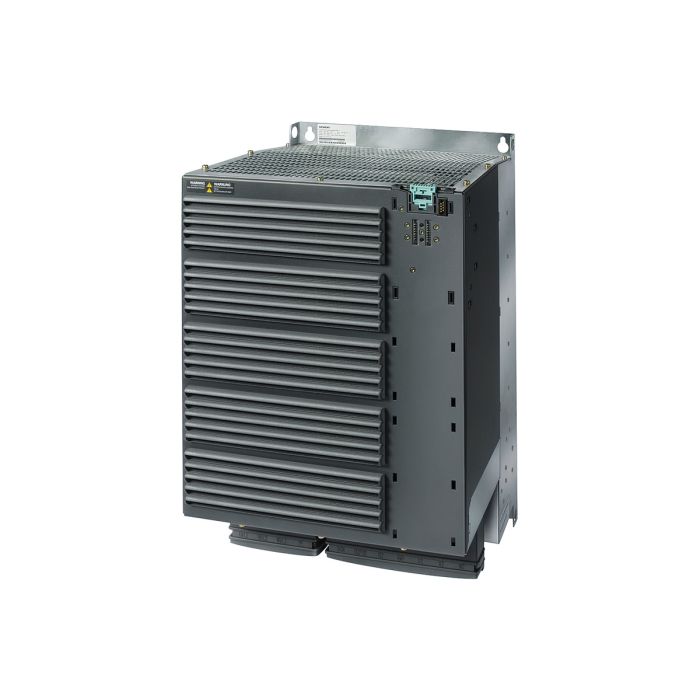

Siemens 6SL3225-0BE37-5UA0

SINAMICS G120 POWER MODULE PM250 WITHOUT FILTER POSSIBILITY OF…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ $1,143.70
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

Introducing the SINAMICS G120 POWER MODULE PM250, an advanced solution designed for today’s electrical applications. This power module operates within a voltage range of 380-480V AC, making it suitable for a variety of industrial environments. With a nominal power rating of 75 kW and an impressive overload capacity, it provides exceptional performance under demanding conditions.

Constructed for reliability, this module is equipped to handle high overloads of 200% for 3 seconds and 150% for 57 seconds, ensuring your operations remain efficient even in peak loads. The SINAMICS G120 also features a compact design with dimensions of 634 x 350 x 316 mm, which facilitates easy integration into existing systems.

Ideal for use within ambient temperature ranges from 0 to +50 degrees Celsius, the module comes with a degree of protection IP20, safeguarding it from dust and contact. Whether utilized in a mini-pallet setup or as part of a broader system, the SINAMICS G120 PM250 promises reliability and efficiency for your power management needs.

SINAMICS G120 POWER MODULE PM250 WITHOUT FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 90KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 634 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
178
Nom. power rating:
75
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
35,00 x 31,60 x 63,40
Weight:
76.94lbs
Commodity Code:
85044086
ECCN number:
3A225
